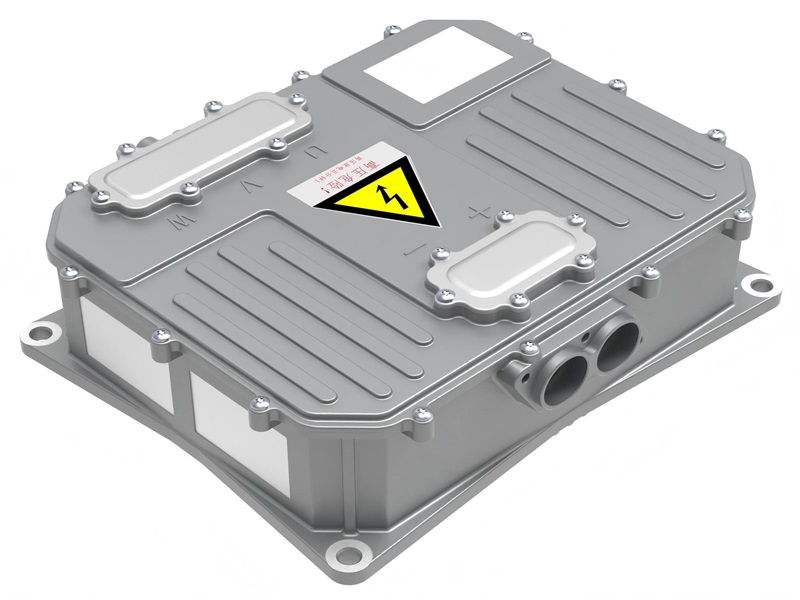

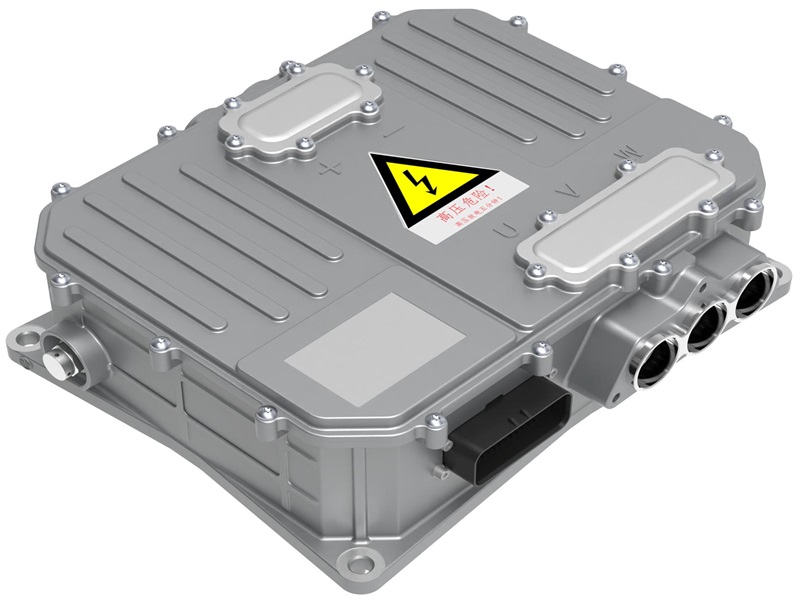

This product is applicable to various fields such as mini vehicles, sweeping vehicles and construction machinery vehicles. It integrates VCU functions and supports UDS diagnosis and OTA remote upgrades. The controller is matched with a permanent magnet synchronous motor, uses a rotary transformer as the rotor position detection sensor, has a complete protection mechanism and IP67 high protection level, providing an efficient, intelligent and comfortable driving solution for pure electric vehicles.
Project Number :
002Payment :
Prepayment requiredProduct Origin :
Xiamen City,Fujian Province ,ChinaColor :
Gold and silver color; Silver-white| Serial number | Project | Describe | Remark |
| 1 | Motor Type | Permanent magnet synchronous motor | / |
| 2 | Operating Voltage Range | 200 – 450 Vdc | / |
| 3 | Rated Voltage | 320 Vdc | / |
| 4 | Cooling Method | Natural air cooling | Requires airflow for cooling |
| 5 | Rated/Peak Power | 10 kW / 27 kW | / |
| 6 | Rated/Peak Torque | 25 Nm / 105 Nm | / |
| 7 | Rated/Peak Speed | 2500 rpm / 9000 rpm | / |
| 8 | Encoder Type | Resolver | / |
| 9 | Motor Dimensions | / | / |
| 10 | VCU Function | Driving mode recognition, vehicle speed calculation, etc. | Support |
| 11 | Protection Functions | Fault protection, safety protection, active damping, etc. | Support |
| 12 | Diagnostic Protocol | UDS (Unified Diagnostic Services) | Support |
| 13 | Firmware Update | OTA (Over‑the‑Air) remote upgrade | Support |
| 14 | Wake-up Mode | Hardwired wake‑up and sleep mode | / |
| 15 | Ingress Protection | IP67 | / |
| 16 | Communication Interface | CAN 2.0 | / |
| 17 | Low‑Voltage Control Supply | 12 V | / |
| 18 | Motor Controller Size | / | / |
Interface Specifications

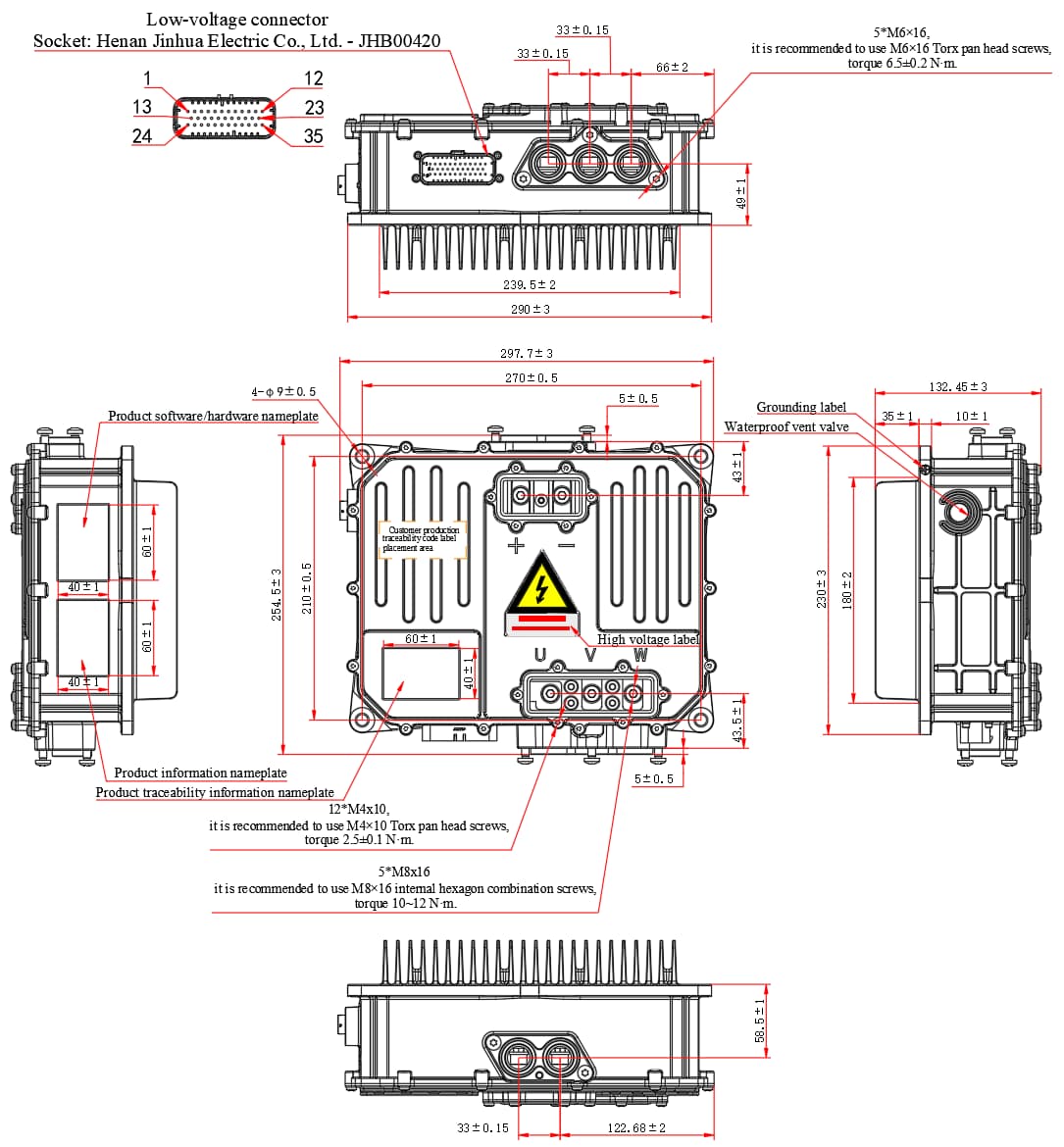

Interface Appearance Diagram

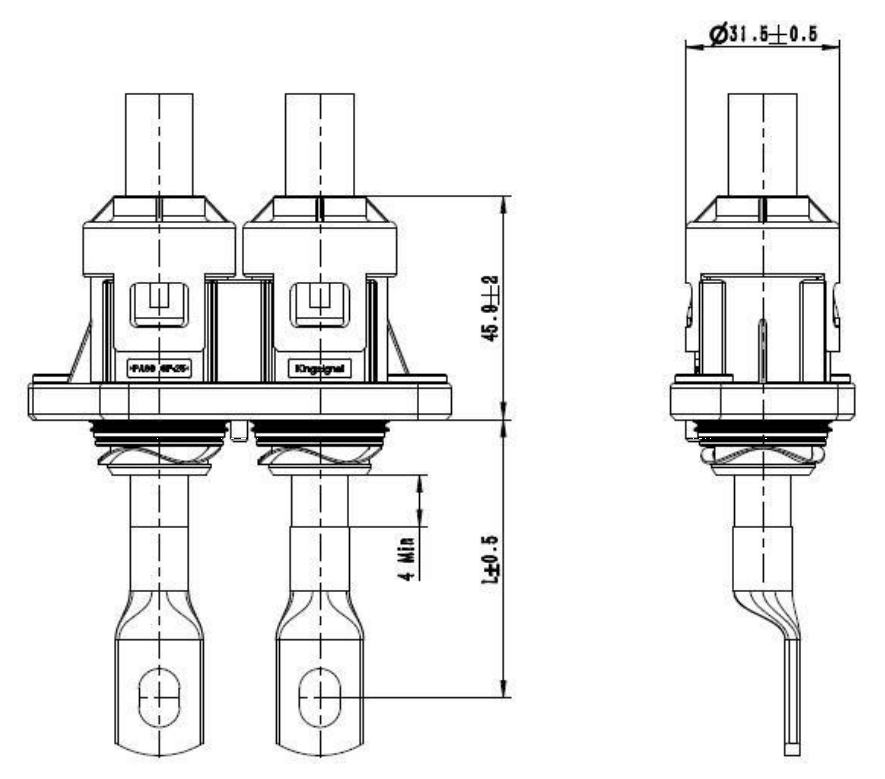

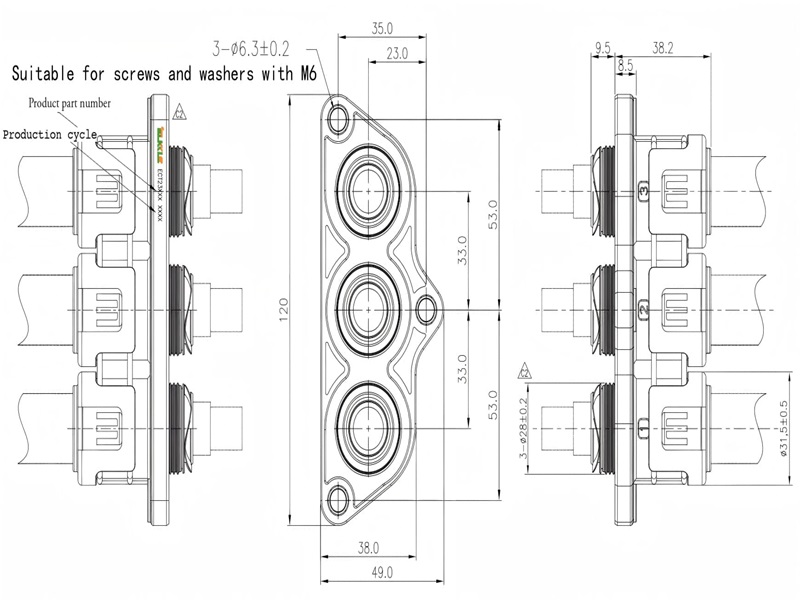

High Voltage Connector

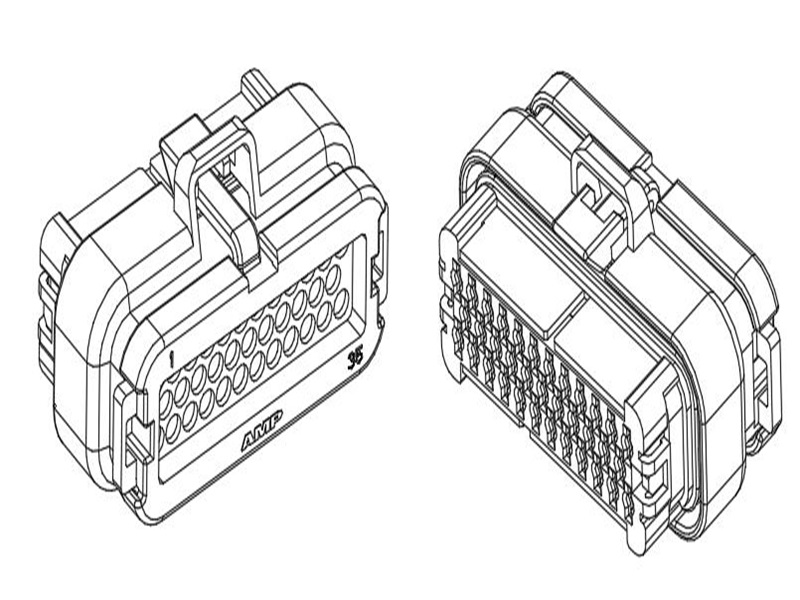

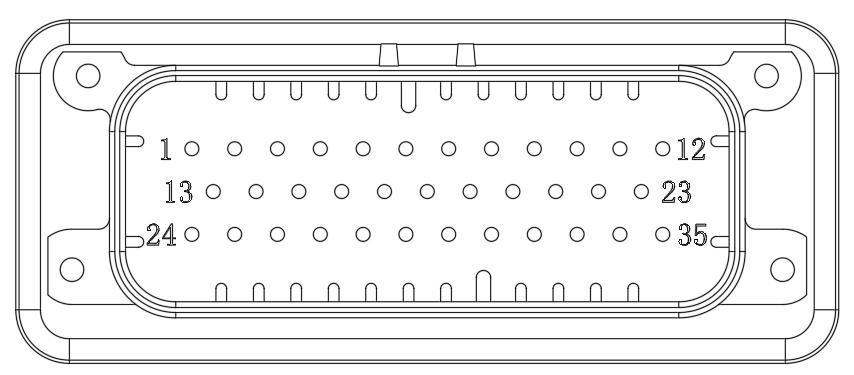

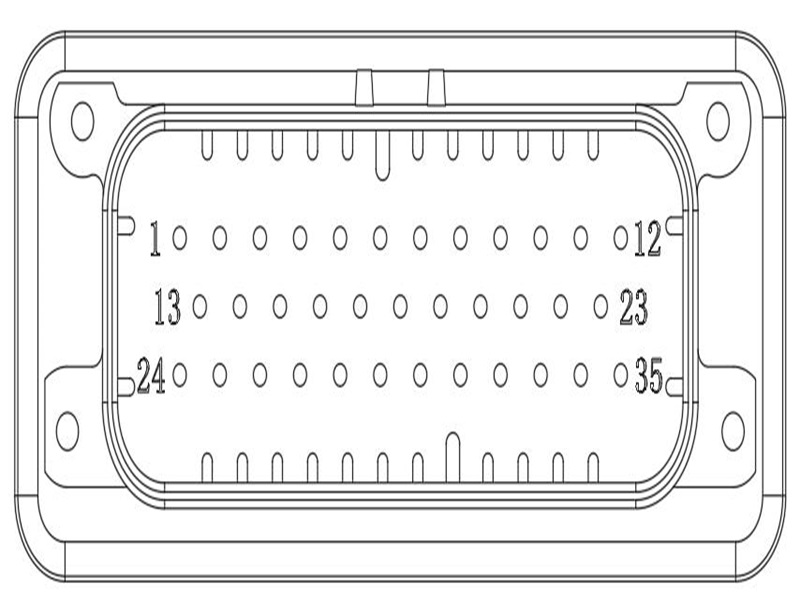

Low Voltage Connector
Key Product Features：
Flexible Voltage Compatibility
Supports a working voltage range of 200–450Vdc, enabling rapid matching to multiple vehicle and equipment platforms without the need for additional hardware modifications.
High-Reliability Environmental Durability
Rated IP67 for ingress protection, delivering superior dust and water resistance for stable operation in harsh conditions such as high dust, humidity, and vibration. An integrated resolver provides precise rotor position feedback, ensuring efficient and smooth motor performance.
Intelligent Control Integration
Integrates VCU (Vehicle Control Unit) functions—including driving mode recognition and vehicle speed calculation—along with UDS diagnostics and OTA over-the-air updates. Additional features such as fault protection, safety protection, and active damping enable full lifecycle intelligent management.
Convenient System Integration
Equipped with a standard CAN2.0 communication interface and built-in safety mechanisms and data logging capabilities, the controller allows seamless integration with vehicle or equipment electronic control systems, reducing commissioning and service costs.
Factory Environment & Service Advantages
Production Environment
Standardized dust-free workshop with end-to-end automated testing ensures consistent quality and reliability for every unit. Key components are sourced from leading industry suppliers, guaranteeing quality from the ground up.
R&D Capability
An experienced motor control team provides customized parameter tuning and function development services, enabling rapid response to customer-specific requirements.
Application Scenarios
