This product is applicable to various fields such as micro vehicles, three-wheelers and construction machinery vehicles. It adopts a flat-wire winding design, which combines the advantages of lightweight system and high power density. It supports UDS diagnosis, OTA upgrade and CAN communication, has a complete protection mechanism and IP67 high protection level, providing an efficient and reliable driving solution for micro electric vehicles. The controller is matched with a permanent magnet synchronous motor, and the motor rotor position detection encoder type is ABZ encoder.
Project Number :
001Payment :
Prepayment requiredProduct Origin :
Xiamen City,Fujian Province ,ChinaColor :
Silver whiteWeight :
Motor：19.6Kg ， Motor controller：4.2kgPerformance Specs:
(1) Structural efficiency advantage
By using permanent magnet synchronous flat-wire motor, compared with traditional round-wire motor, the flat-wire winding can increase the slot occupancy rate, thereby improving the motor efficiency and continuous output capacity.
(2) Power performance and power density
Flexible power configuration
High power density
(3) Reliability and adaptability
Protection grade IP67, with excellent dustproof and waterproof performance, can adapt to complex working conditions.
Using ABZ encoder, precisely control the motor speed and position, ensuring the accuracy of power output.
(4) Functional features
The electronic control system supports VCU function, UDS diagnosis, and OTA remote upgrade. Users can select torque/velocity mode and real-time event recording, and possess complete protection functions such as fault protection, safety protection, and active damping.
(5) System integration CAN communication, built-in safety functions, and data logging for commissioning and field service.
Supports CAN communication, has built-in safety functions, and provides data recording necessary for debugging and on-site services
| Serial number | Project | Describe | Remark |
| 1 | Motor type | Permanent magnet synchronous motor | Flat wire |
| 2 | Working voltage range | 60-108Vdc | / |
| 3 | Rated voltage | 96Vdc | / |
| 4 | Cooling method | Natural air cooling | Requires windward assembly |
| 5 | Rated/peak power |
6 kW/12kW or 7.5kW/15kW |
Compatible 10kW/23kW |
| 6 | Rated/peak torque | 18Nm/65Nm | Compatible 28Nm/95Nm |
| 7 | Rated/peak speed | 3500/7500rpm | / |
| 8 | Encoder type | Z ABEncoder | / |
| 9 | Reverse electromotive force amplitude | 19V@1000rpm | / |

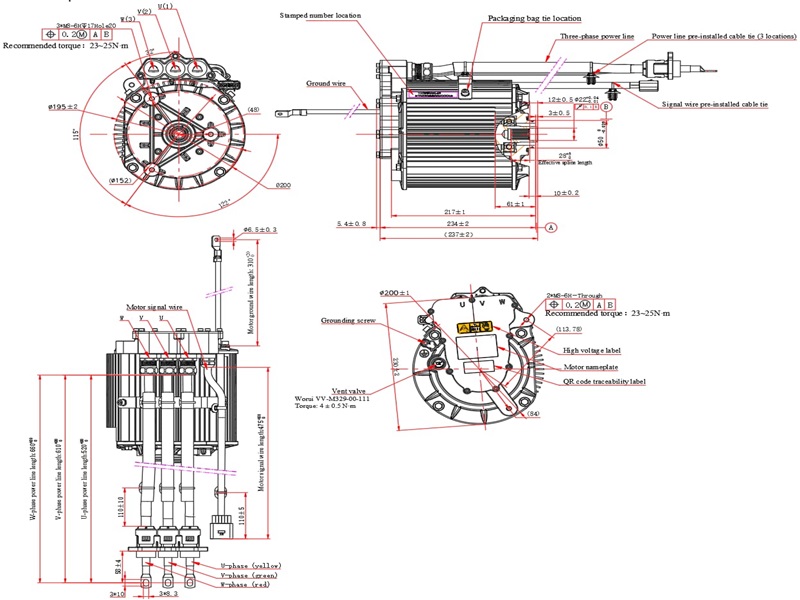

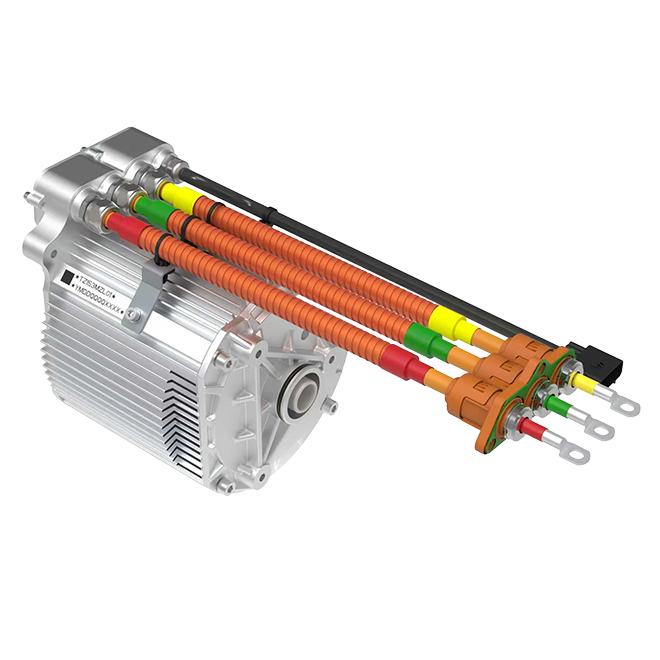

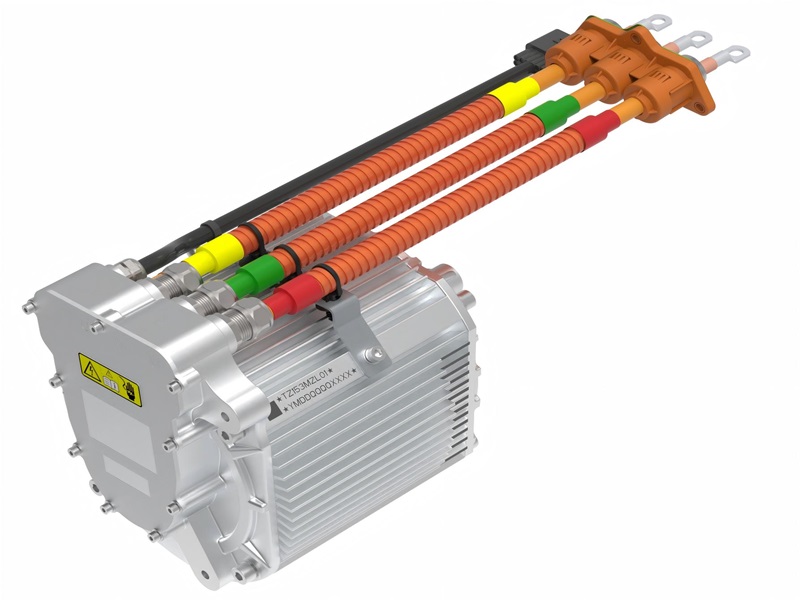

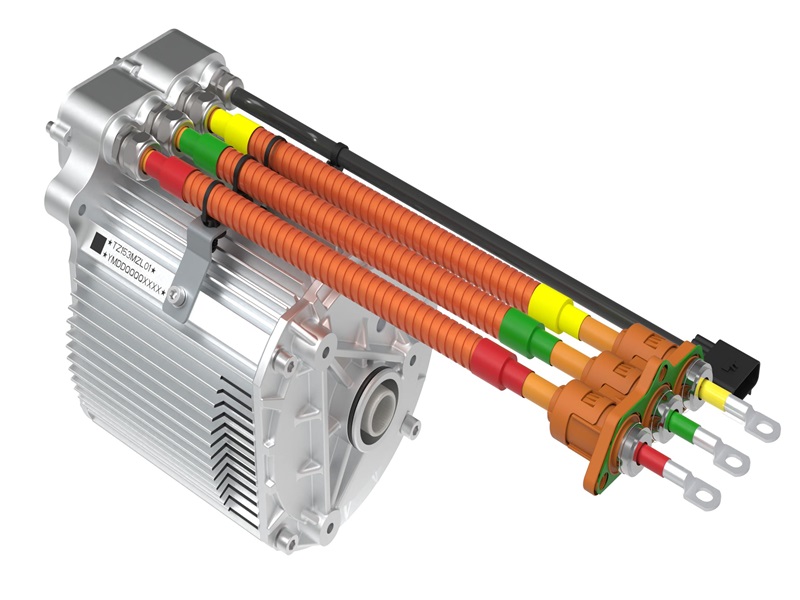

| 10 | Motor Size | 195*230*237mm | / |
| 11 | VCU function | Driving mode and logic for recognizing vehicle speed calculation, etc. | Support |
| 12 | Protection function | Fault protection, safety protection, active damping, etc. | Support |
| 13 | Diagnosis method | UDS Diagnosis | Support |
| 14 | Upgrade method | OTA Remote Upgrade | Support |
| 15 | Wake-up method | hardwired wake-up and sleep mode | / |
| 16 | Protection level | IP67 | / |
| 17 | Control communication methods | CAN2.0 | / |
| 18 | System low-pressure control power supply | 12V | / |

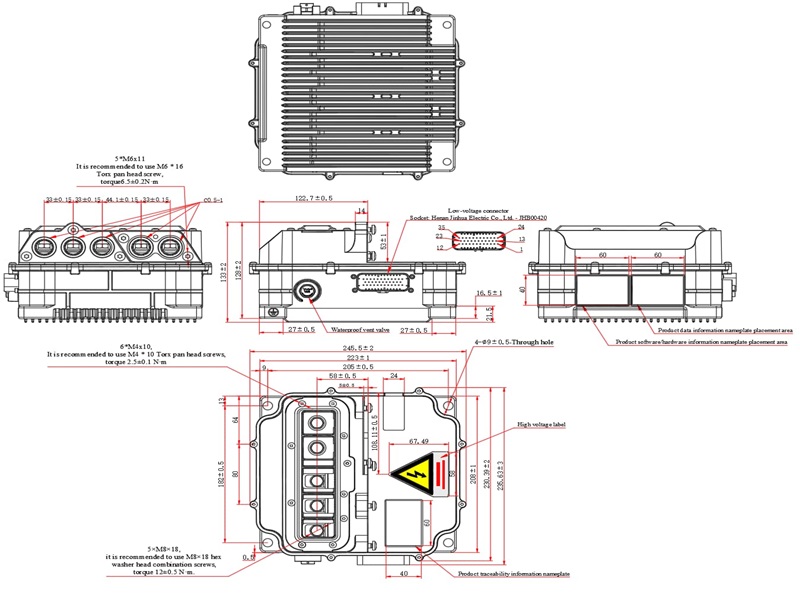

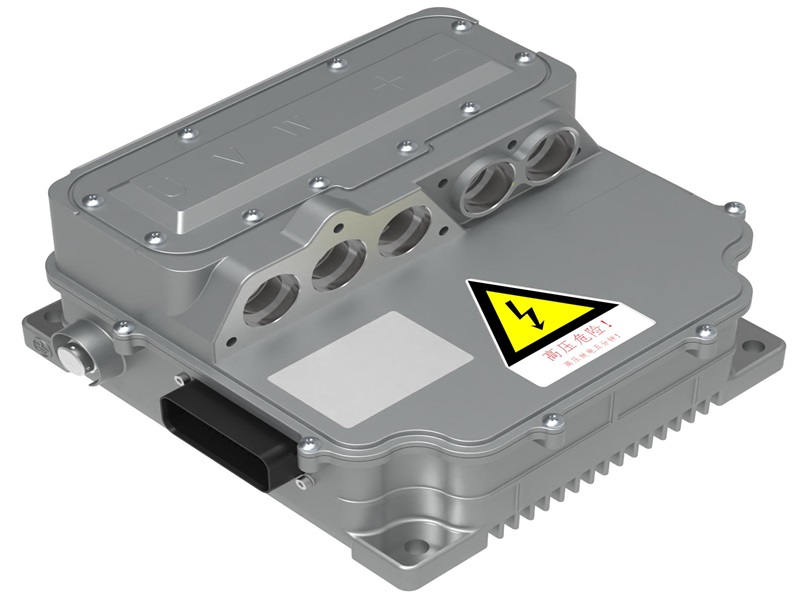

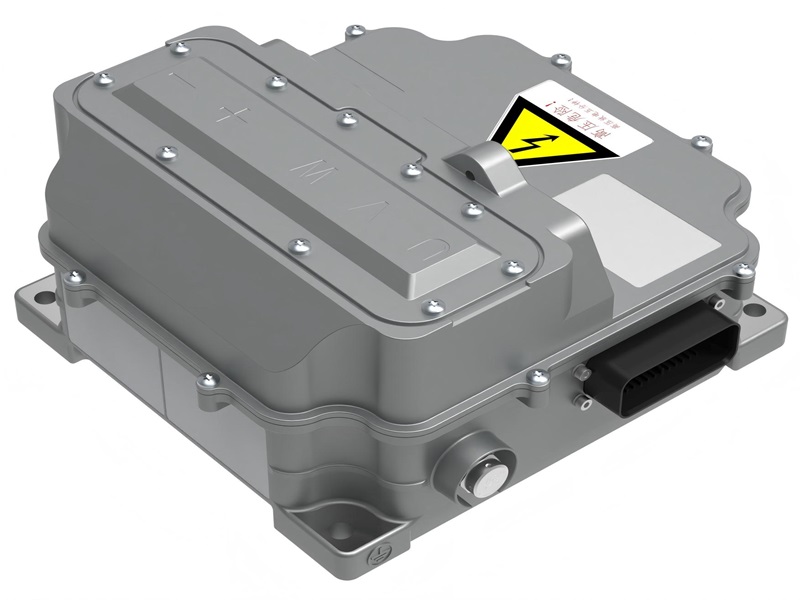

| 19 | Motor controller size | 235.6 *245.5*133mm | / |
Interface Specifications

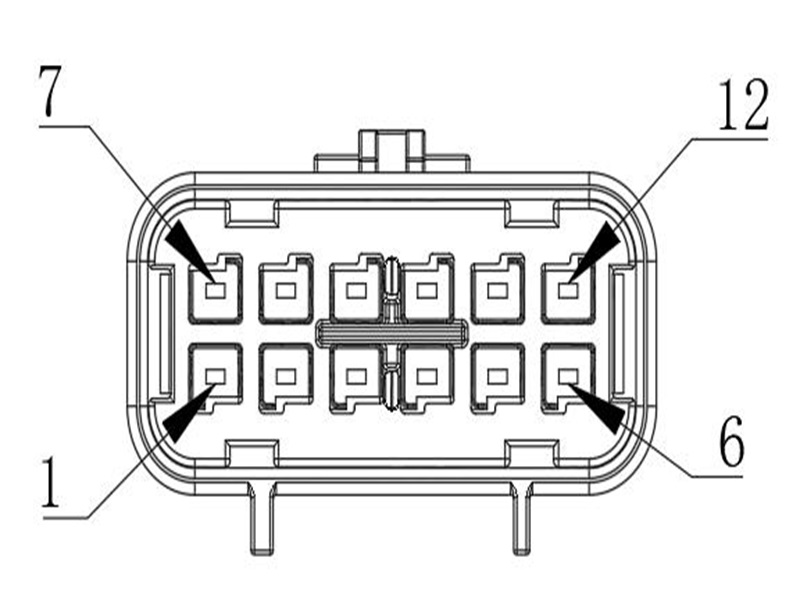

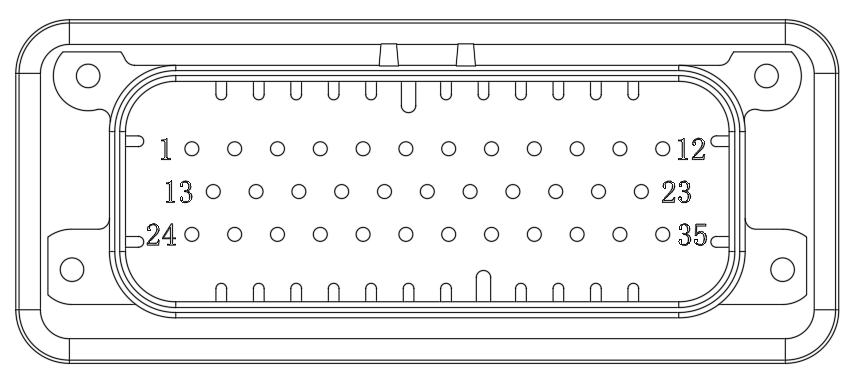

Interface Appearance Diagram

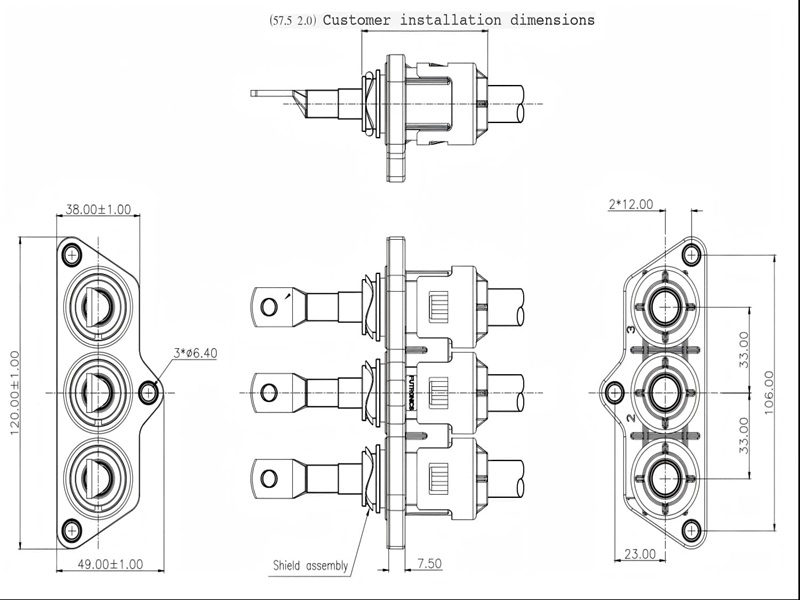

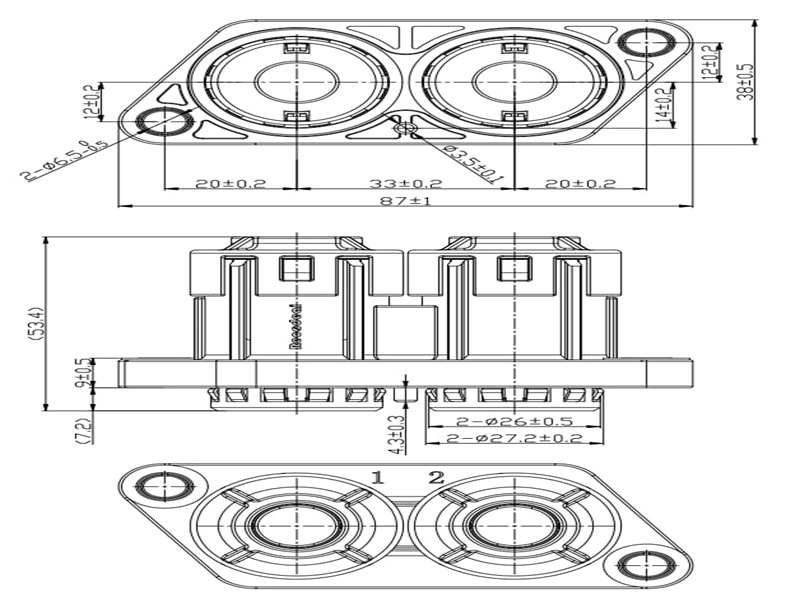

High Voltage Connector

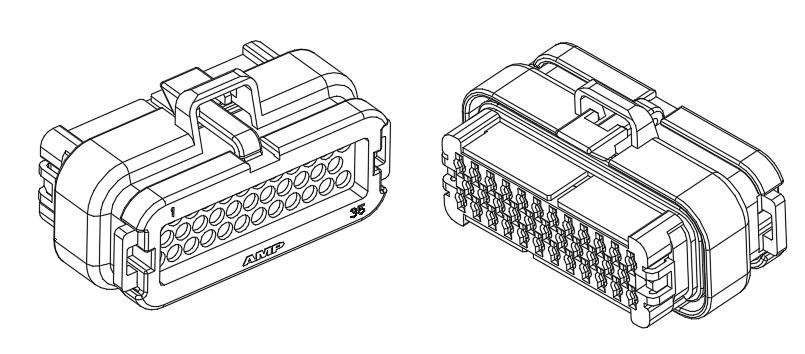

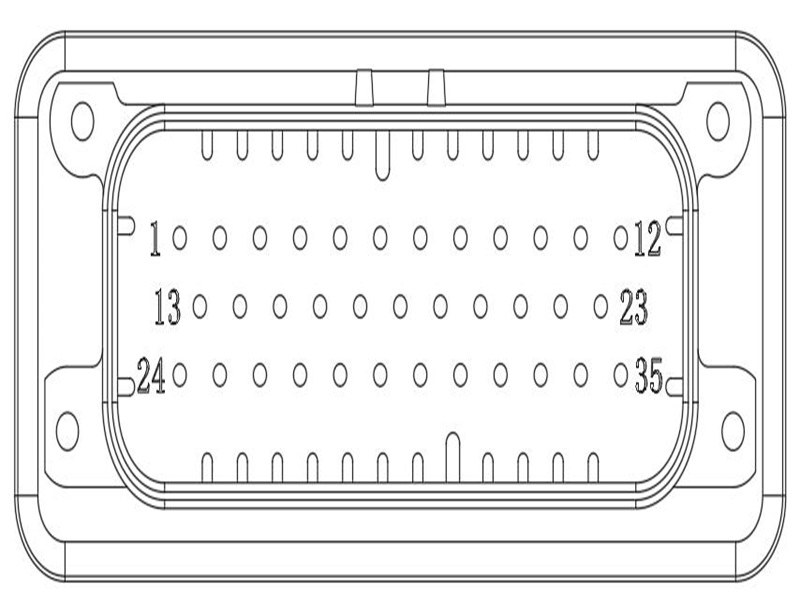

Low Voltage Connector
Why Choose WISE?
In-House Core Algorithm & Hardware Design
Full intellectual property rights for motor control and power stage design, enabling fast customization and stable performance.
Flexible Customization Capability
Customizable power, torque, mechanical dimensions, mounting interface, CAN matrix and control logic.
Reliable Supply Chain & Mass Production Capacity
Stable upstream supply chain and automated production lines ensure consistent quality and on-time delivery.
