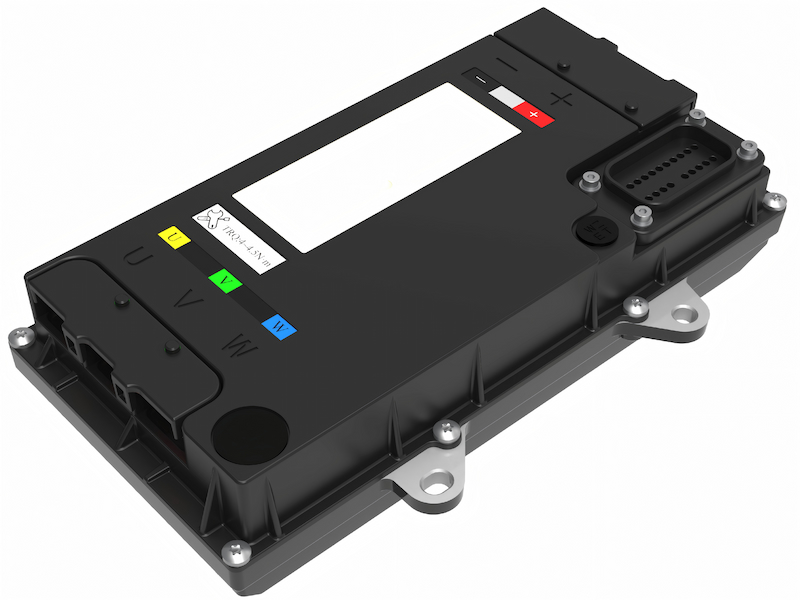

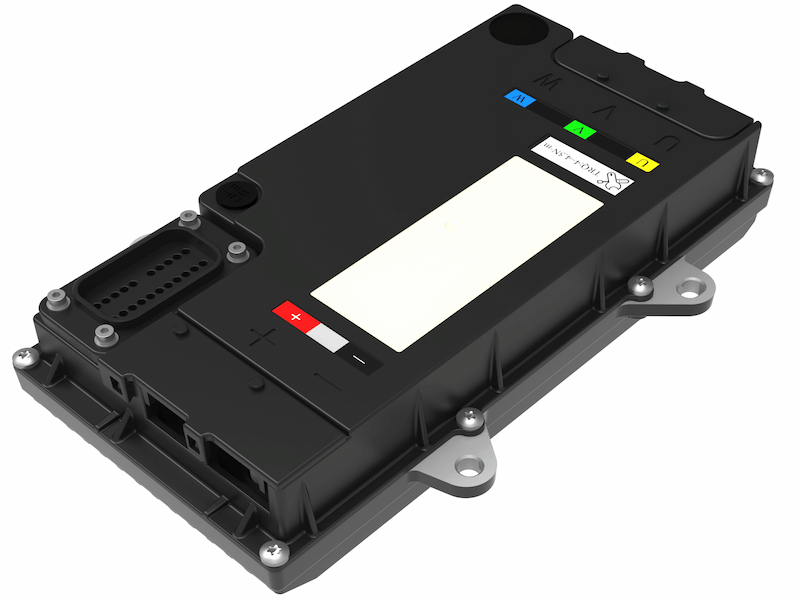

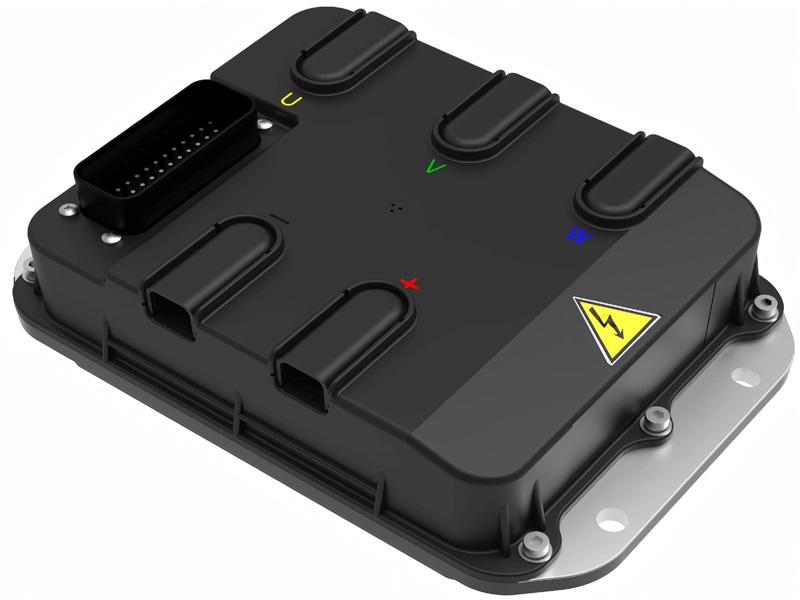

The 48V-72V pure electric vehicle product platform is specifically designed for electric motorcycles (with a speed of 100-120 kilometers per hour). It supports the optional selection of high-performance MOSFET modules and uses low-resistance MOSFET components, effectively reducing conduction losses and improving the overall conversion efficiency and operational reliability of the entire machine.
It integrates three core intelligent functions: Bluetooth functionality, automotive-grade UDS diagnosis, and OTA remote updates.
Project Number :
Drive System Platform（Y831）Order(MOQ) :
Based on full container load (FCL); exact quantity varies with the packaging solution of each product.Payment :
Prepayment requiredProduct Origin :
Xiamen City,Fujian Province ,ChinaColor :
BlackLead Time :
From deposit to vessel loading : 30–35 days for regular bulk orders.
Parameter Specifications
Fully certified to IATF 16949, CE certification
| No. | Item | Description / Specification | No. | Item | Description / Specification | Remarks / Constraints |
| 1 | Product Type | Motor Controller | 1 | Product Type | Motor Controller | / |
| 2 | Compatible Sensor Type | Magnetic Encoders | 2 | Compatible Sensor Type | Magnetic Encoders | Supports 5V–12V supply encoders |
| 3 | Operating Voltage Range | 35–85 Vdc | 3 | Operating Voltage Range | 35–85 Vdc | / |
| 4 | Rated Voltage | 48 / 60 / 72 Vdc | 4 | Rated Voltage | 48 / 60 / 72 Vdc | / |
| 5 | Rated / Peak Phase Current | 160 A / 350 A | 5 | Rated / Peak Phase Current | 180 A / 450 A | / |
| 6 | DC Bus Current | 150 A | 6 | DC Bus Current | 150 A (Cont.) / 200 A (Peak) | / |
| 7 | Communication Interface | One-Wire / CAN 2.0 | 7 | Communication Interface | One-Wire / CAN 2.0 | / |
| 8 | Cooling Method | Natural Air Cooling (Passive) | 8 | Cooling Method | Natural Air Cooling (Passive) | Installation Constraint: Must be mounted in the vehicle's frontal airflow path |
Interface Specifications

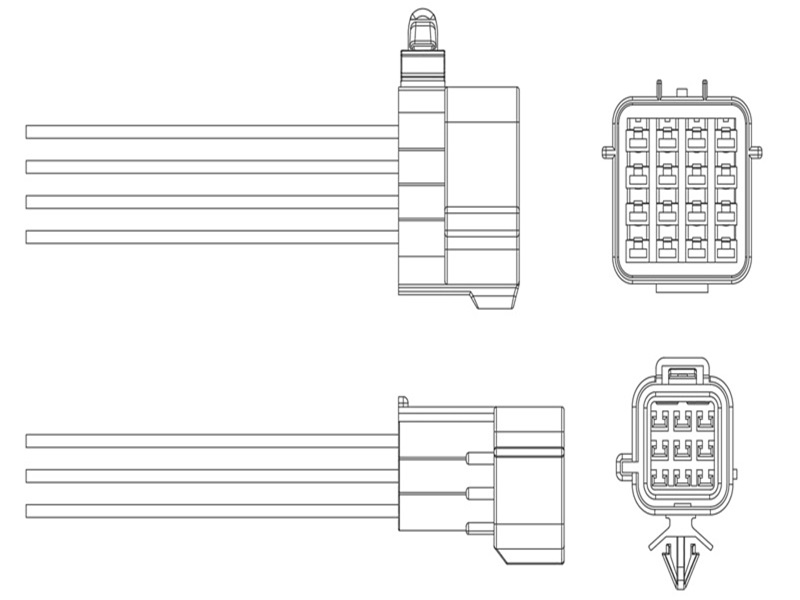

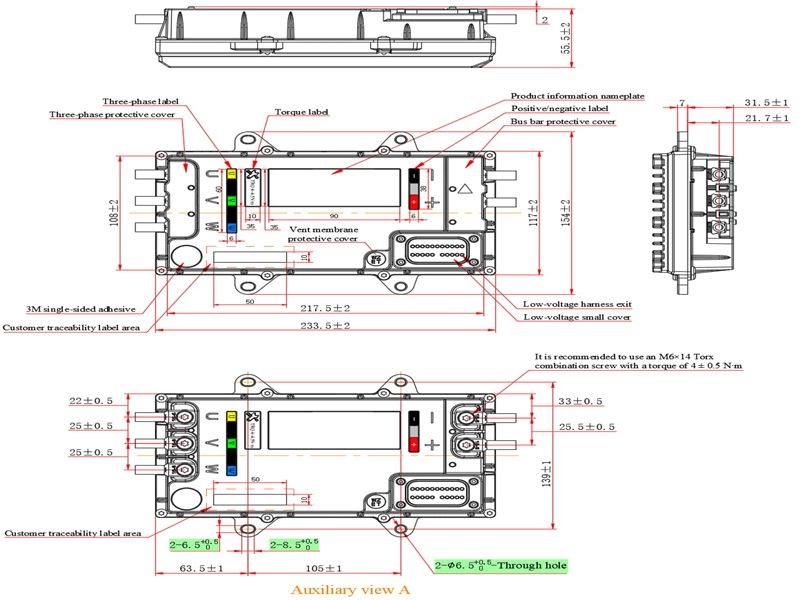

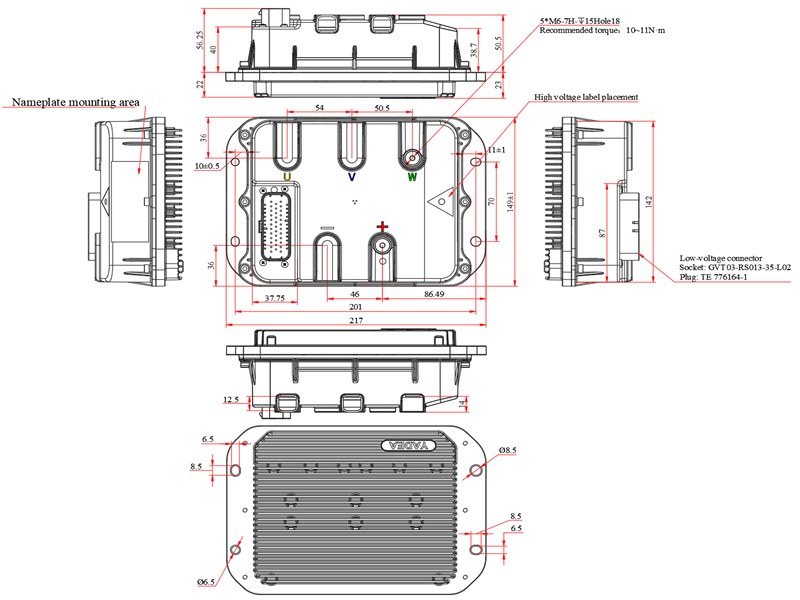

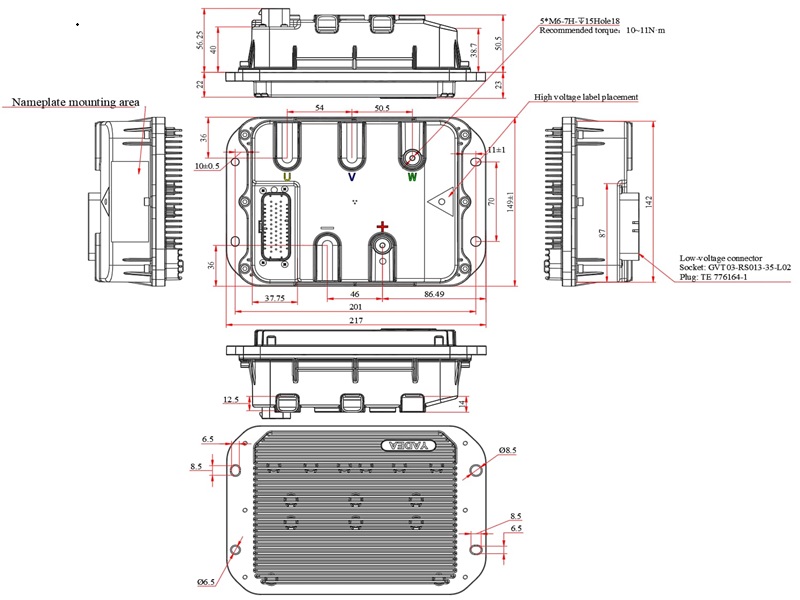

Interface Appearance Diagram

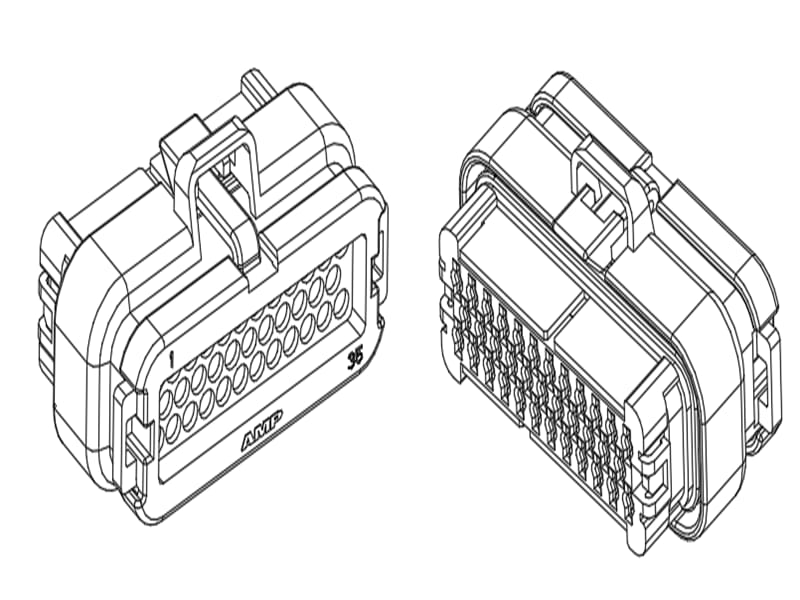

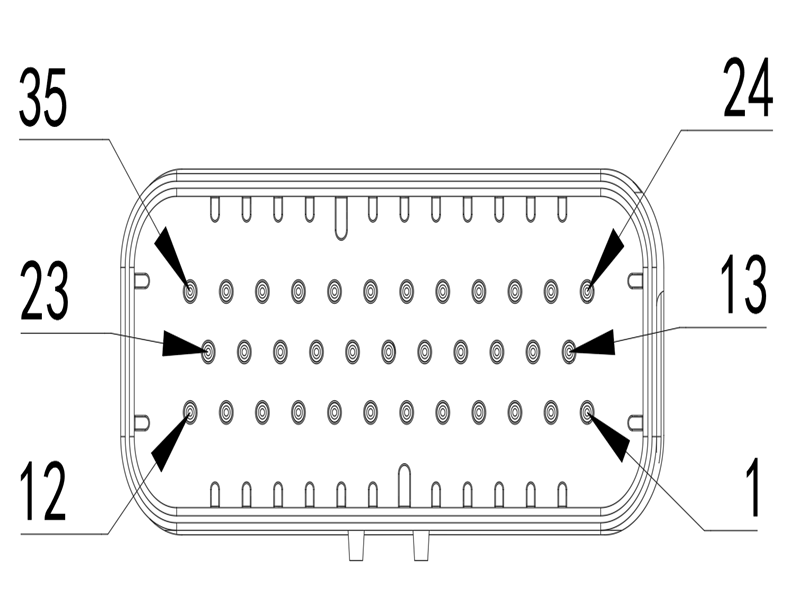

Low Voltage Connector Interface Diagram
Ultimate Lightweighting——Magnesium alloy construction reduces weight by ~30% compared to traditional aluminum, directly extending vehicle range, optimizing weight distribution, and enhancing handling safety.
Flexible Configuration——Available in Standard and High-Performance versions with optional MOSFET modules. OEMs can flexibly control BOM costs based on vehicle positioning, avoiding payment for excessive performance.
Maintenance-Free Cooling——Optimized natural air-cooling structure utilizes vehicle airflow for efficient heat dissipation, eliminating the need for fans, thereby reducing failure rates and maintenance costs.
Accelerated Production——Integrated Bluetooth functionality allows technicians to calibrate parameters and read faults directly via a mobile app without dedicated cables.
Lifecycle Management——Supports OTA remote update.
Wide Voltage Coverage——Operating voltage spans 35V-85Vdc, perfectly covering the full series of 48V/60V/72V battery platforms. One product meets the development needs of multiple vehicle models.
Universal Sensor Compatibility——Compatible with both Hall sensors and 5V-12V Magnetic Encoders, fitting over 95% of mainstream PMSMs on the market, reducing motor matching difficulty.
Seamless Communication——Supports dual-mode One-Wire/CAN2.0, easily integrating into existing vehicle communication architectures.
Why Partner With Us?
1.Direct Manufacturer, Deep Customization:
As an electromechanical system manufacturer with a complete industry chain, we offer not just standard products but deep hardware/software customization (e.g., specific communication protocols, unique mounting structures) tailored to your vehicle architecture, with a response speed 3x faster than traders.
2.Future-Proof Technology:
Our controller architecture reserves interfaces for 2026+ intelligence trends (such as IoV data upload and ADAS linkage), ensuring your vehicle models remain relevant for the next 3-5 years.
3.Quality Commitment, Worry-Free Delivery:
Leveraging automated production lines and rigorous automotive-grade testing processes (including thermal cycling, vibration, and EMC tests), we commit to delivering products with exceptional consistency, safeguarding your mass production schedule.
Call to Action
Planning a new high-speed e-motorcycle or smart logistics vehicle?
Contact our engineering team today to request sample testing and a customized solution. Let us help your product stand out in the competitive market.
