Engineered for high-speed two-wheelers (60-80 km/h), electric tricycles, and light logistics vehicles.
——Featuring an aerospace-grade lightweight magnesium alloy housing
——optional high-efficiency MOSFET modules
——With built-in wheel speed detection, Bluetooth debugging, UDS diagnostics, and OTA remote updates,
Project Number :
Drive System Platform（BA22）Order(MOQ) :
Based on full container load (FCL); exact quantity varies with the packaging solution of each product.Payment :
Prepayment requiredProduct Origin :
Xiamen City,Fujian Province ,ChinaColor :
BlackLead Time :
From deposit to vessel loading : 30–35 days for regular bulk orders.
Performance Specs:

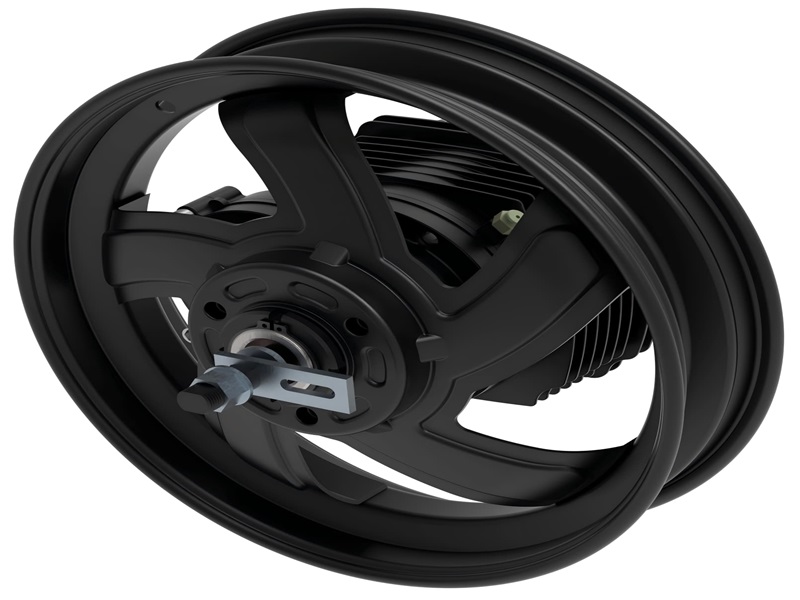

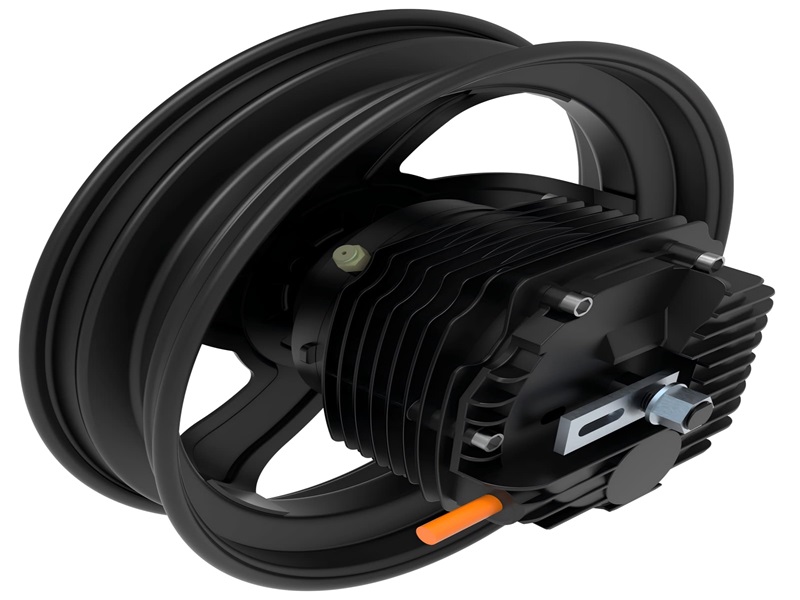

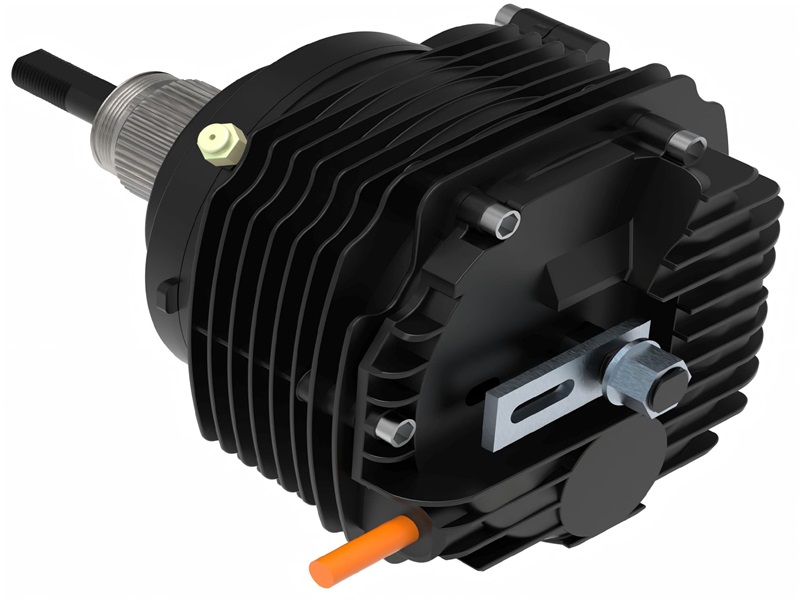

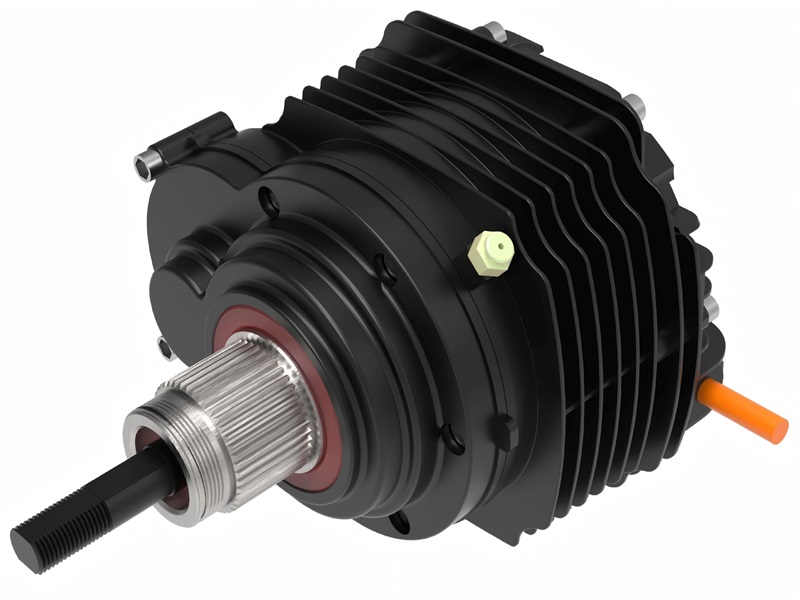

Motor Technical Specifications
|
Category |
Description |
Specifications |
|
Basic Parameters |
Motor Type (130-32H/35H) |
Permanent Magnet Synchronous Motor (PMSM) |
|
Installation Position |
Hub Mounted Installation |
|
|
Nominal Operating Voltage (VDC) |
72V |
|
|
Gear Ratio |
6.69/8.58 |
|
|
Rated Power /Peak Power (kW) |
2.5、3.5、4.0kW/6.5kW |
|
|
Rated / Peak Torque (Nm) |
45, 51, 63Nm/200-270Nm |
|
|
Rated / Peak Speed (rpm) |
520, 750rpm/930, 1300rpm |
|
|
Compatible Position Sensor Type |
ABZ+PWM |
|
|
Max Efficiency (%) |
93% |
|
|
Pole Pairs |
6/8 |
|
|
Weight (kg) |
8.0 |
|
|
Environment & Protection |
Operating Ambient Temperature |
-25~60 ℃ |
|
Insulation Class |
H |
|
|
Ingress Protection Rating |
IP67 |
|
|
Gearbox Maintenance |
Gear oil change: 165 mL / 3000 km |
|
|
Cooling Method |
Natural Air Cooling |

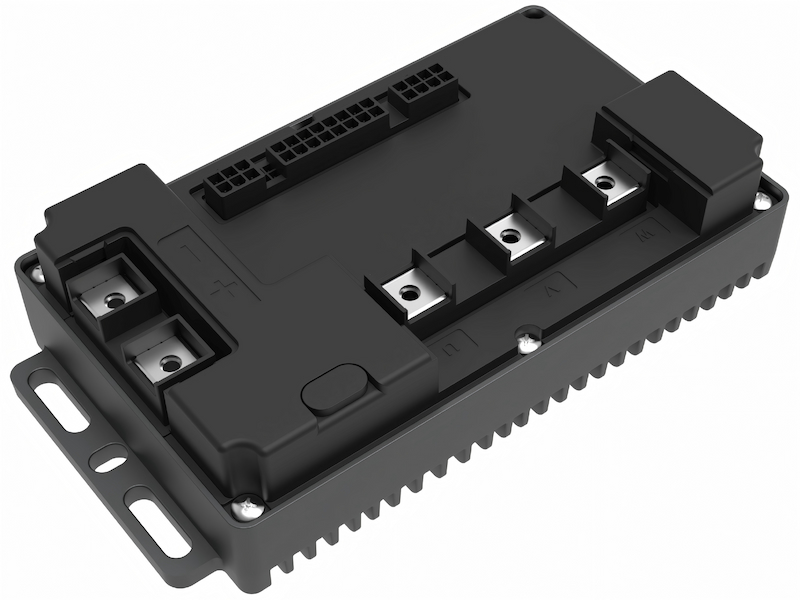

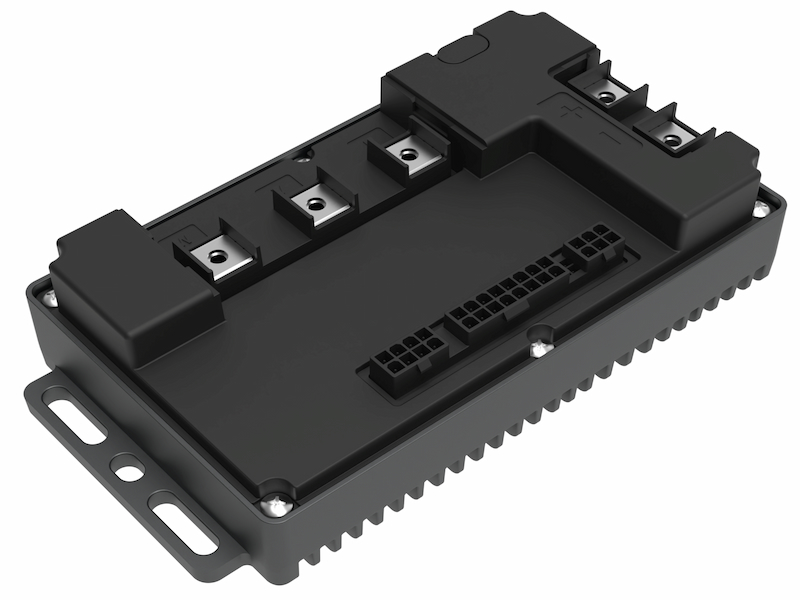

Motor Controller Technical Specifications
|
Category |
Description |
Specifications |
|
Basic Parameters |
Motor Type |
PMSM (Permanent Magnet Synchronous Motor) |
|
Nominal Operating Voltage (VDC) |
84V |
|
|
Operating Voltage Range (VDC) |
60-110V |
|
|
Peak Bus Current (A) |
100A |
|
|
Peak Output Current (A) |
300A |
|
|
Rated Power (kW) |
4.0kW |
|
|
Peak Power (kW) |
7.0kW |
|
|
Compatible Position Sensor Type |
HALL |
|
|
Compatible Temperature Sensor Type |
PTC/NTC |
|
|
Performance & Communication |
Max Efficiency (%) |
98% |
|
Communication Protocol |
CAN Communication |
|
|
Control Mode |
Torque |
|
|
Environment & Protection |
Operating Ambient Temperature |
-25~60℃ |
|
Ingress Protection Rating |
IP67 |
|
|
Cooling Method |
Natural Air Cooling |
Interface Specifications

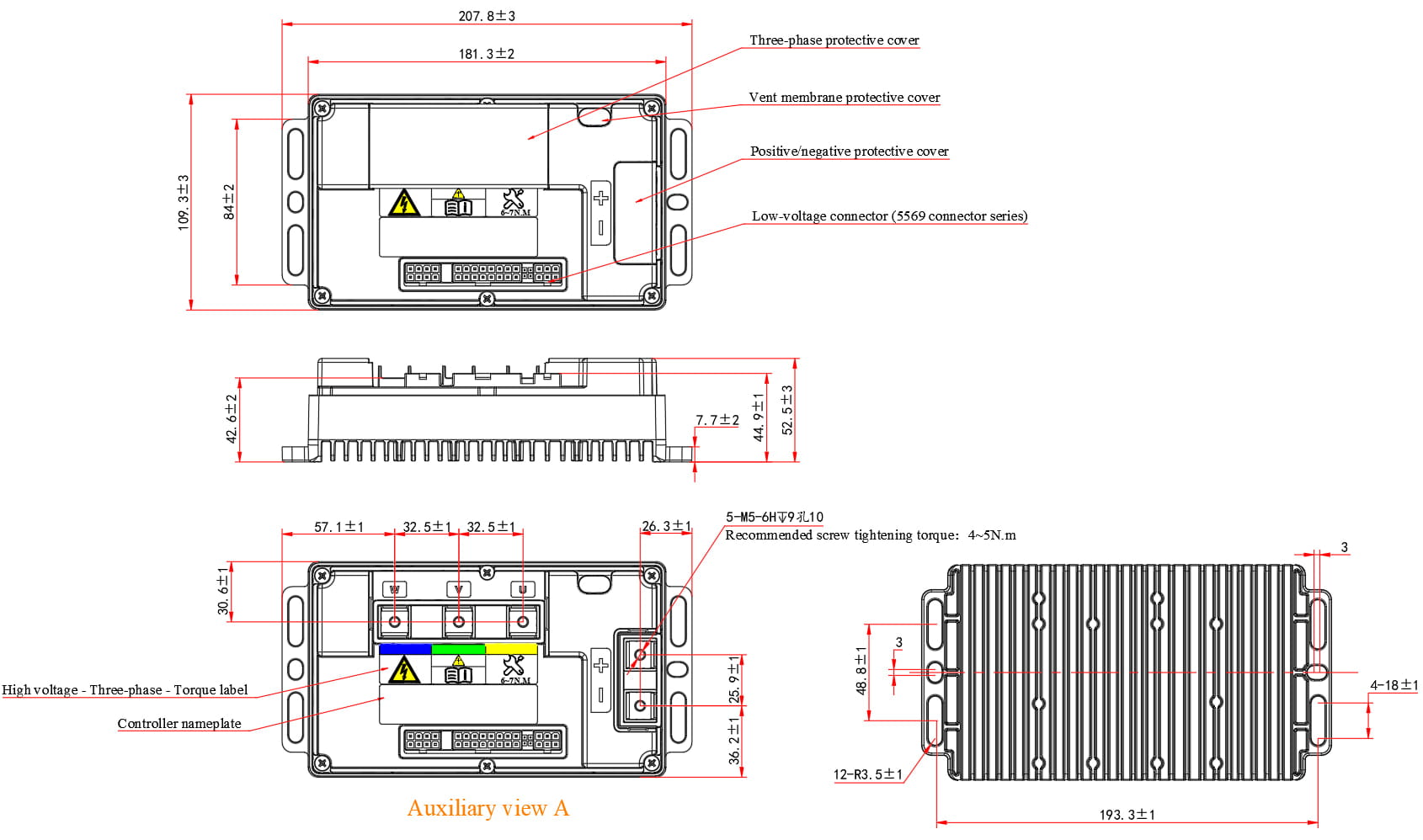

Interface Appearance Diagram

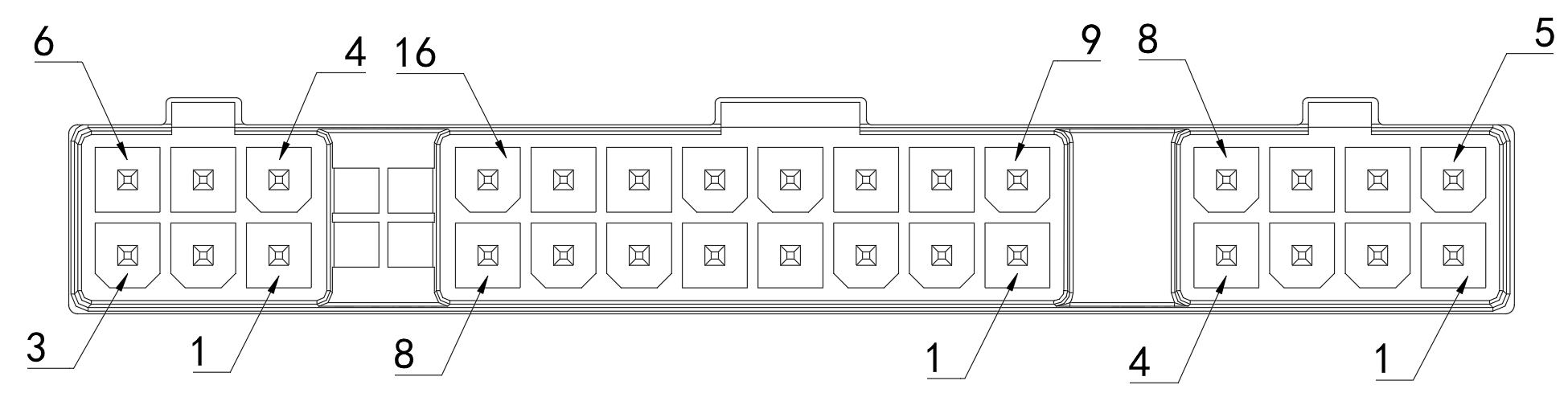

Low Voltage Connector Interface Diagram
Factory and Quality Control Assurance
1.Our production base adheres to the dust-free workshop standards and operates throughout in a clean environment, effectively eliminating the interference of dust and static electricity on the precision circuits, ensuring the stability and consistency of each controller.
2.We have an experienced professional R&D team, with core members having many years of R&D experience in the field of new energy motors and electronic control. They can quickly respond to customers' customized requirements and provide a full-process service from scheme design to technical support.
3.In terms of production capacity and supply chain, we have sufficient inventory reserves and a mature supply chain management system, ensuring stable supply and controllable delivery schedules. At the same time, we have a well-established production team and standardized operation procedures, along with strict quality inspections, to guarantee the stable delivery of large-scale orders.
Why Choose Us
1.Ultimate Lightness & Power
Crafted with lightweight magnesium alloy, reducing weight by approx. 30% compared to traditional aluminum housings, significantly enhancing vehicle range and handling. Available in dual current ratings (Rated 80A/100A, Peak 260A/300A), perfectly adapting to a wide voltage platform from 48V to 96V.
2.Intelligence Integration
Say goodbye to traditional black boxes. Integrated Bluetooth functionality enables direct mobile debugging, shortening production line calibration time; supports UDS (Unified Diagnostic Services) compliant with automotive-grade fault troubleshooting standards; features OTA (Over-The-Air) update capabilities, allowing feature iterations without vehicle recalls.
3.Flexible Customization
Optional high-performance MOSFET modules Compatible with both Hall sensors and Magnetic Encoders (5V-12V), fitting various mainstream motors. Supports One-Wire/CAN2.0 communication for seamless integration with existing vehicle architectures. Natural air-cooling design utilizes vehicle airflow for efficient heat dissipation, ensuring maintenance-free reliability.
Looking For Pure EV Drive System Platform
Contact our technical team today to request the detailed datasheet, 3D models, and sample testing. Let us help make your new energy special vehicles more competitive.Contact information: wisedrv@wiseelec.cn
